Exploring Tesla's Gen 2 Optimus Humanoid Robot: Unpacking the Latest Video
In today's newsletter, we're taking a closer look at Tesla's latest reveal – the Gen 2 Optimus humanoid robot. We'll be breaking down their recent video, diving into the details to uncover the fascinating technology and innovation behind this new version.
We'll keep it engaging and easy to understand, even if you're not a robotics expert. Get ready to unpack the technical aspects of Tesla's latest robot in a way that's both informative and accessible to all.
Design and Miniaturization

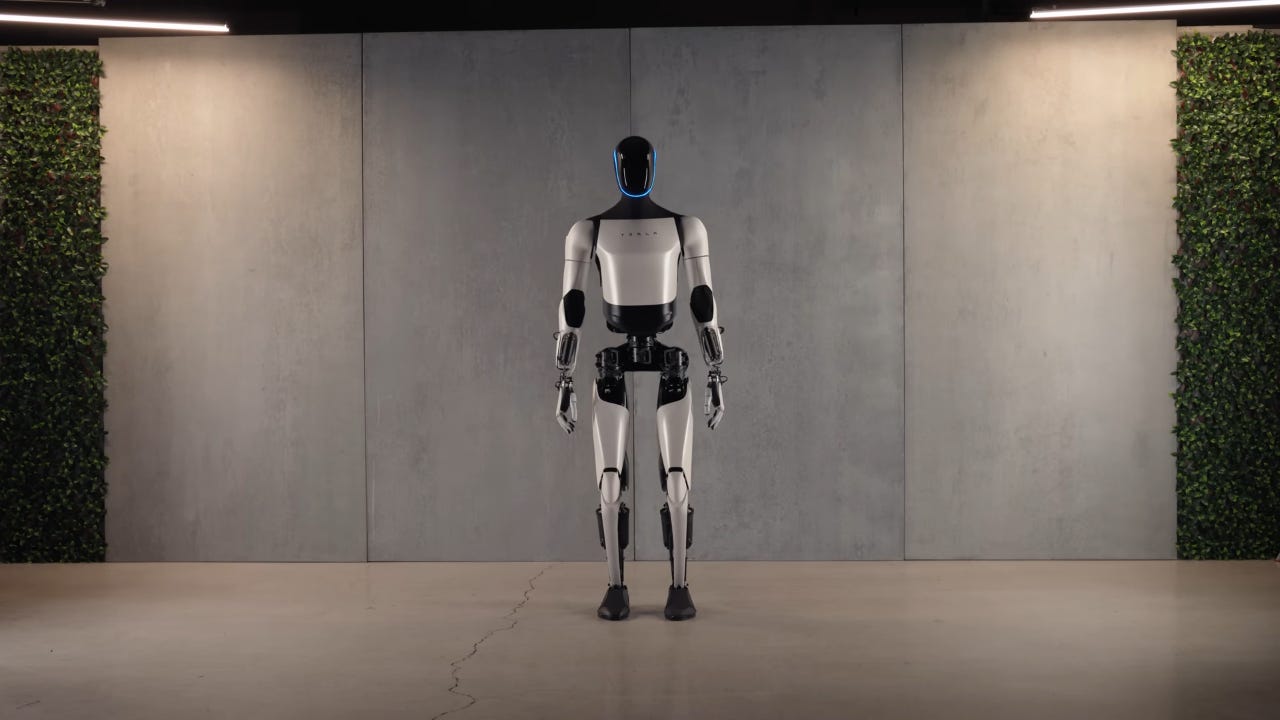

First, compare the latest video with the one released two months ago. The differences are striking and indicate substantial progress in the robot's design. The most apparent change is in its size and weight. Reducing aluminum use is a clear factor in the robot's 10kg weight reduction. This change is not just a matter of aesthetics but a strategic move towards enhanced efficiency and agility.
Moreover, the reduced number of pinch points and loose cabling not only contributes to a sleeker design but also speaks about Tesla's improvements in packaging. These changes hint at a deeper understanding of the robot's subsystems and assembly, leading to an intrinsically safer and more robust design.
Intrinsic Safety
Intrinsic safety is a fundamental design principle in engineering, particularly relevant in developing complex systems like humanoid robots. It refers to the design of equipment and systems that are inherently safe, even in the event of a failure or malfunction.
In robotics, intrinsic safety encompasses integrating features that minimize the risk of injury or damage when the robot interacts with its environment or humans. This includes the incorporation of fail-safes, redundancy in critical systems, and using materials and designs that reduce the likelihood of accidents, such as softer exteriors or limiting the force and speed of movements.
Essentially, intrinsic safety is about anticipating potential failure modes and engineering solutions that prevent these scenarios from leading to hazardous situations. This approach ensures the safety of those interacting with the robot and enhances the reliability and trustworthiness of the technology as a whole.
Advancements in Manufacturability and Cost-Effectiveness
A significant shift in the robot's outer design involves panelling and fabrics. This move is a strategic step towards improving manufacturability, reducing costs, and decreasing weight.

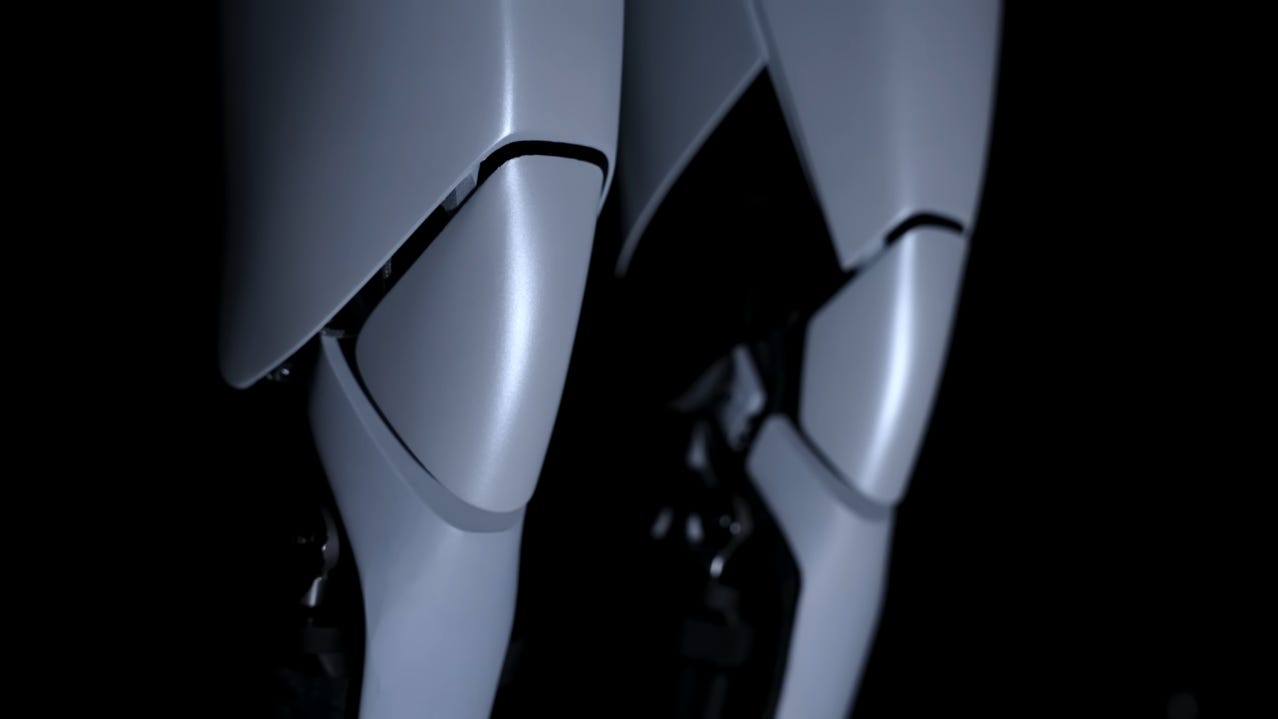

The body panels, characterized by their deep draws, suggest that Tesla might lean toward thermoforming. This method is particularly effective for producing polymer-based body panels and is known for being cost-effective for medium-volume manufacturing. Such a choice in manufacturing technique implies that Tesla is preparing for a scale-up in production, possibly for mass internal deployment.
Body Panels
Body panels in robotics serve as a critical component in the design and functionality of robots, especially in humanoid and other complex robotic systems. These panels, typically made from materials like polymers or lightweight metals, are not just for aesthetics but play a vital role in protecting the robot's internal components from external elements and impacts. They are designed to be both durable and lightweight, contributing to the overall efficiency and mobility of the robot.
The design of these panels often involves advanced manufacturing techniques such as thermoforming or injection moulding, allowing for precise shapes and sizes that fit the robot's frame snugly. In addition to protection, body panels can also house sensors and other electronic components, integrating them seamlessly into the robot's structure. This integration is essential for maintaining the robot's functionality while ensuring a sleek, unobtrusive appearance.
The ease of assembly and maintenance is also a key consideration in the design of body panels; they are often designed to be easily removable or adjustable, facilitating quick access for repairs, upgrades, or routine maintenance.
Thermoforming
Thermoforming is a versatile manufacturing process widely used in producing intricate panel designs, especially in robotics and other technology sectors. This process involves heating a plastic sheet until it becomes pliable and then moulding it to a specific shape using a mould and vacuum. This method is advantageous for creating complex, lightweight panels with precise dimensions and contours.
In robotics panel design, thermoforming balances structural integrity and design flexibility. It allows for the production of panels that are not only aesthetically appealing but also functionally integral to the robot's architecture. These panels can be designed to accommodate various functional requirements, such as housing electronic components or providing protective casing.
The efficiency of thermoforming in handling medium-volume production makes it a cost-effective choice, especially when it comes to customizing designs or making iterative improvements in response to evolving technological needs.
Humanoid Ergonomics and Functional Design

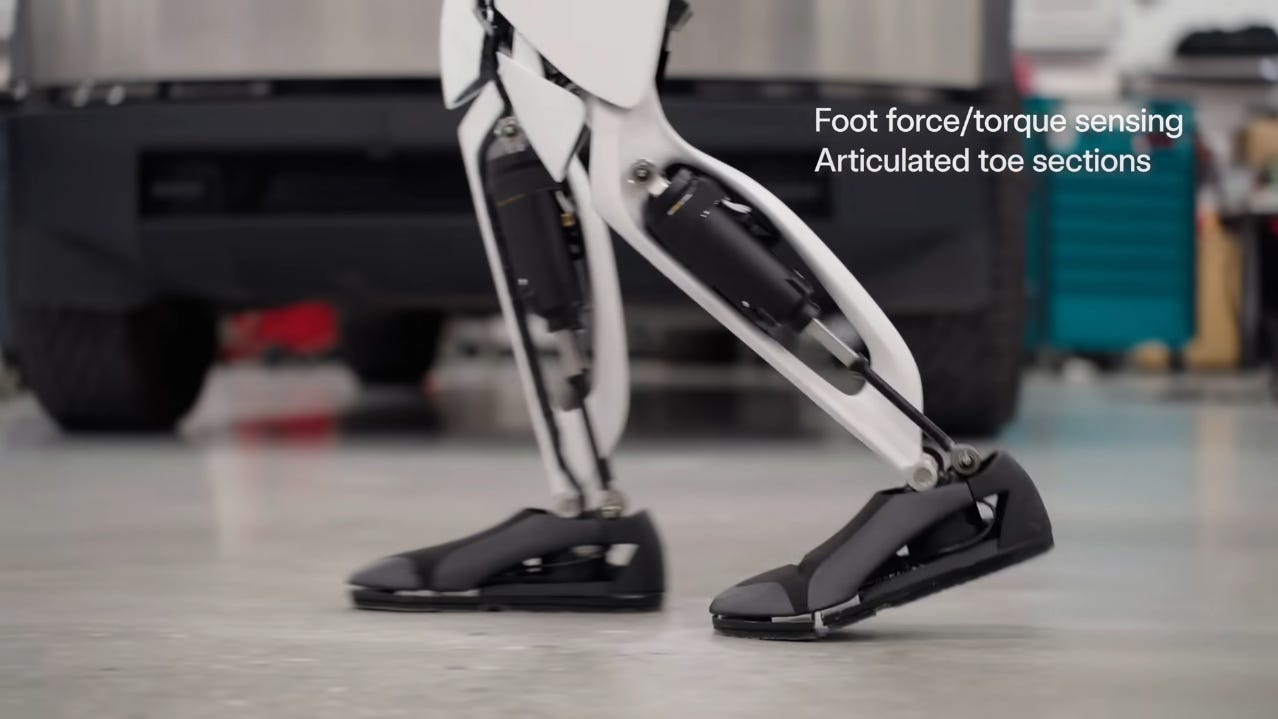

An intriguing aspect of the robot's design is the introduction of “footwear.” This development may seem trivial initially, but it represents a profound understanding of humanoid ergonomics. By incorporating “shoes,” Tesla acknowledges the importance of adapting the robot to the human environment.
The robot's walking pattern now includes a more natural foot geometry, enhancing gait efficiency. This increases the robot's walking speed and reduces energy consumption. Furthermore, the overall reduction in the robot's weight contributes significantly to its energy efficiency and intrinsic safety.
Footwear & Gait
Just as in human footwear, where extensive research and development have led to designs optimizing comfort, efficiency, and safety, similar principles are now being applied to humanoid robots. The focus on shoe design in robots is not merely cosmetic but functional, aiming to improve grip, stability, and movement efficiency.
Robots achieve a more natural, efficient gait by incorporating human-like foot geometry and dynamic articulation, including the 'toe-off' phase in walking. This enhances their walking speed and reduces energy consumption – a critical factor in the robot's operational efficiency. The concept of 'cost of transport,' which measures the energy required for moving, becomes significantly optimized in such designs.
Additionally, the reduced mass of these robots, aided by efficient shoe design, minimizes potential damage during accidental collisions or falls. This evolution from a simplistic, flat-footed movement to a more sophisticated walking pattern is a leap from basic mobility to advanced, energy-efficient, and safer locomotion.
Maintenance and Assembly Considerations
The video included a behind-the-scenes look at the robot’s assembly process, and Tesla's design also showcases a keen focus on maintenance and assembly. The snap-on body panels are a thoughtful addition, emphasizing ease of repair and cost-efficiency. This feature is essential, considering body panels are prone to damage. Additionally, the modular design of the hands as an independent subsystem is a clever approach. It allows for easier maintenance and opens the door for agile engineering processes. This modular approach also enables the possibility of specialized hands for different industrial tasks, offering versatility and potential customization for enterprise clients.
Removable Body Panels
Implementing easily removable body panels represents a practical robot design, particularly in maintenance and repair. This modular approach allows technicians quick and straightforward access to the robot's internal components, streamlining the repair process by simply removing the relevant panels. This design not only reduces maintenance time but also minimizes the potential for damage during repairs.
Robot Hands
Treating the robot's hands as an independent subassembly is a strategic move, acknowledging the complexity and importance of hand mechanics in robotics. Maintenance and upgrades become more efficient by designing the hands to be detachable. Technicians can replace or repair hands without needing to navigate the more complex main body of the robot.
From a design perspective, this modular approach allows specialized teams to focus solely on hand development. These teams can work on iterating and refining hand designs, testing new concepts, and then easily integrating them into existing robot models. This separation of concerns facilitates a more agile and responsive engineering process, allowing for rapid advancements in one of the most challenging areas of humanoid robotics.
Design for Maintenance & Assembly
Design for Maintenance (DfM) and Design for Assembly (DfA) are key principles in engineering that focus on simplifying a product's maintenance and assembly processes.
DfM aims to design products to make them easy to maintain and repair, reducing downtime and maintenance costs. This involves creating components that are easily accessible and replaceable and require minimal tools or expertise for maintenance.
DfA concentrates on simplifying the product assembly process, reducing the number of parts and assembly steps, and ensuring that components can be effortlessly aligned and joined.
Both principles are vital in increasing a product's overall efficiency, reliability, and lifespan. They also play a crucial role in cost reduction, both in terms of manufacturing and long-term maintenance.
Advanced Control and Dynamics

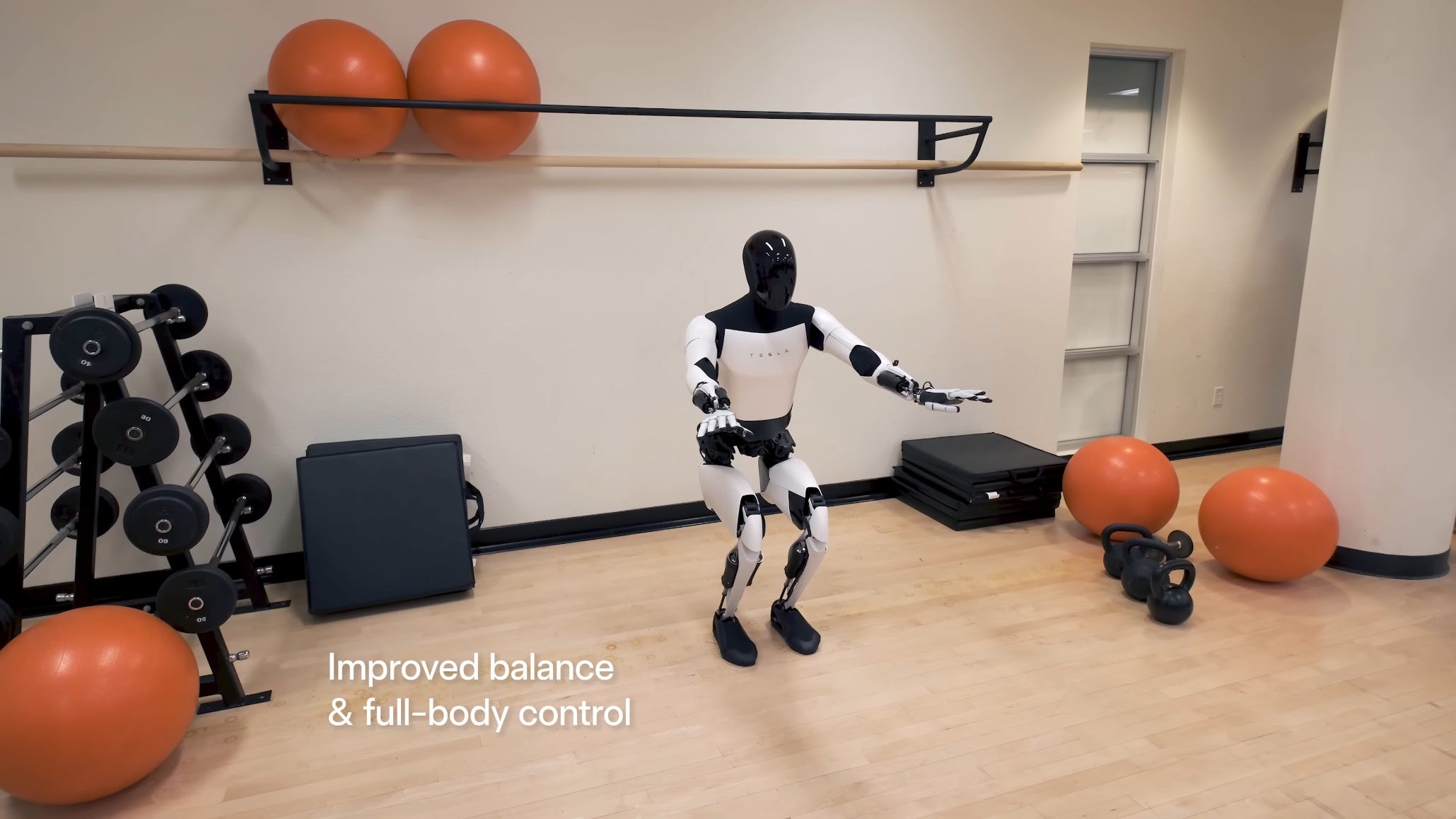

Whether pre-recorded or dynamically generated, the squatting demonstration is an impressive showcase of advanced robotic control and integration. This movement highlights the robot's sophisticated understanding of its support polygon and center of gravity, critical factors in maintaining balance and stability during complex maneuvers. Achieving this level of control requires integrating software modelling, kinematic design, and electromechanical systems cohesively and effectively.
Dynamic motion necessitates collaboration between mechanical, electrical, and software teams, a challenge often compounded by the traditional siloed nature of these teams in many organizations. The weight distribution, mechatronic design, and overall system dynamics must be accurately represented and synchronized within the software stack. This requires a deep understanding of the mechanical and electromechanical systems, including the weight and distribution of each component and subsystem.
Support Polygon
In humanoid robotics, the concept of the support polygon is critical for balance and stability. Essentially, it's the imaginary shape formed by connecting the points where the robot touches the ground, typically its feet.
The robot's stability depends on keeping its center of gravity within this polygon. As the robot moves or changes posture, like in walking or squatting, maintaining the center of gravity within the polygon is crucial to prevent falling. Managing this balance is complex, involving the mechanical design and advanced control algorithms to adjust dynamically to the robot's movements.
CI/CD & Sim2Real
A Continuous Integration/Continuous Deployment (CI/CD) design pipeline and a sim2real approach revolutionize the development process.
The CI/CD pipeline facilitates a seamless flow from design to deployment, where changes in robot design – whether mechanical, electrical, or software – are continuously integrated and tested. This ensures that modifications are compatible and perform as expected in real-world scenarios.
Simultaneously, sim2real, or simulation-to-reality, plays a crucial role. It involves rigorously testing and refining robot behaviours in a simulated environment before implementing them in the physical robot. This method significantly reduces the risks and costs associated with direct real-world testing.
By combining CI/CD with sim2real, engineers can rapidly iterate designs, validate functionalities, and enhance the robot's performance and reliability. This integrated approach accelerates development, encourages innovation, and ensures that the final product is robust and ready for real-world interactions.
Nonlinear Model Predictive Control
Nonlinear Model Predictive Control (NMPC) is an advanced control strategy for managing complex systems, particularly those with nonlinear dynamics and constraints. At its core, NMPC involves predicting the future behaviour of a system over a defined time horizon using a nonlinear model. The controller then optimizes the control inputs in real-time to achieve the desired outcome while adhering to system constraints and limitations. This is achieved by repeatedly solving an optimization problem, which balances achieving the target performance with minimizing costs or other metrics.
NMPC is particularly effective in complex system dynamics, and the interaction with the environment is unpredictable, as it allows for dynamic adjustments based on real-time feedback. The versatility and adaptability of NMPC make it ideal for applications ranging from robotics and autonomous vehicles to process control in industrial settings, where precision, safety, and efficiency are paramount. The predictive nature of NMPC, combined with its ability to handle nonlinearities and constraints, offers significant advantages over traditional control methods, enabling more robust, efficient, and reliable control of complex systems.
Integration of Cutting-Edge Tactile Sensors

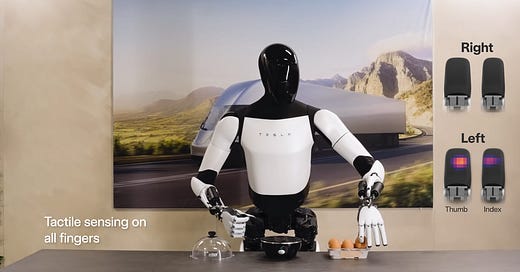

Incorporating tactile sensors in the robot's fingers is a significant advancement for handling various manipulation tasks. These sensors, probably based on capacitive technology, provide high sensitivity for interacting with soft, deformable, or delicate objects. This innovation is aligned with ongoing academic research in tactile sensing, including work from my former colleagues at ETS in Montreal, Prof Jean-Philippe Roberge and Prof Vincent Duchaine. The potential applications of these sensors in non-industrial settings are vast, offering new opportunities for human-robot interaction.
Capacitive Tactile Sensors
Capacitive tactile sensors offer high sensitivity and precision in touch sensing. These sensors operate on the principle of capacitance, which changes when an object comes into contact with or close to the sensor's surface. This allows the sensors to detect the presence of an object and the force of contact, enabling a robot to understand and respond to varying degrees of pressure. This technology is especially valuable in applications where robots interact with delicate or intricately shaped objects, necessitating a gentle touch and nuanced manipulation.
Taxels
Taxels, or TActile piXELs, are robotics and tactile sensing innovations. These tiny sensors are designed to emulate the sensitivity of human touch, detecting and measuring the pressure exerted on a robot's surface, much like human skin perceives touch.
Each taxel acts as an individual pressure point, providing detailed and nuanced feedback about the contact forces between the robot and its environment. This is crucial in applications requiring delicate handling or nuanced manipulation, such as in non-industrial environments where interactions with soft, deformable, or fragile objects are common. Taxels make robots more adept at navigating and responding to the physical world with finesse and precision akin to human touch.
Concluding Thoughts
Tesla's approach to building in public, particularly in a challenging field like humanoid robotics, is admirable and pivotal in shaping perceptions and expectations. These public demonstrations underline that humanoid robotics is not a distant future concept but an emerging, tangible technology.
By showcasing their developments, Tesla stimulates market interest and prepares the world for a new era of human-robot interaction. Such transparency motivates engineering teams to push the transition from concept to reality, thus making sure that these innovations don’t remain theoretical but deliver real-world value.
